Rear bush comes to shove – part 3

If you’ve been keeping up, and have read part1 and part2, this might not be the most hugely entertaining, as part 3 is really just side two – the passenger side – just *working* as it should.

7Dii_IMG_3164When some thing goes as it should – whilst really satisfying, it doesn’t make for a very good story.

Right: Firstly – undoing the bolt holding the transverse arm to the top bush – it’s dead easy.

Just move the arm about of the way and set up the bush press tools……

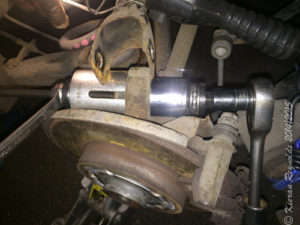

7Dii_IMG_3167….. and I am well on the way to pressing out the old bush – Right.

It’s so easy, it almost hurts 🙂

You can clearly see I have the caliper removed again, and to be fair – it is close in on the splash guard for the rear disc – so that was one thing I needed to keep my eye on, but really – it’s trivial.

Below right: And finally – putting new bush in place.

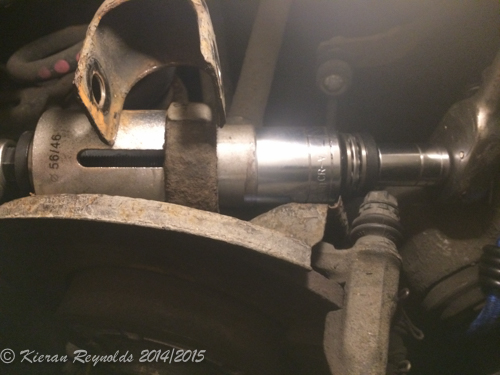

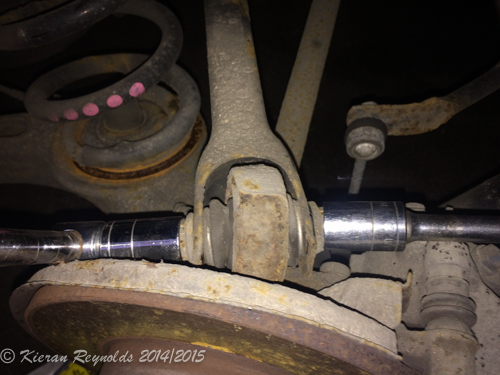

7Dii_IMG_3168Why was I using a socket to push it in instead of my bush press ?

Well – it was tolerances.

The tolerances on this side, once I had scratched the cup of the bush press on the first side – I decided to give this a whirl as the next size down didn’t fit perfectly over the rubber of the bush, but the socket did.

And after all that – put the car back together again, wheels on, and time for a test drive, by going to the local petrol station and put some much-needed fuel back in the car.

Photo-2015-02-16-20-24-38_3181The one thing I wasn’t expecting on my test run –  was this !



That ain’t a pot-hole – it’s a f* tunnel!

In the dark, the fact it was iPhone+ deep and was nearly the entire width of the road isn’t really appreciated in this photo – my back *DEFINITELY* knew about it for days.

Thankfully, it was a bloody good test of my rebuilt suspension – I kinda figure that if it stands up to the kind of stress, it will work for normal every day stress.

P.S. On my way back – about 10 minutes later after putting fuel in the car, a traffic police car had turned up, and was starting to put signs out about the pot hole, and to be fair to the council, they did sort the next day.



Rear bush comes to shove – part 2

Part 2 : Now I’ve removed the bushes, and replaced one, I suppose I’d better getting on with replacing this busted transverse arm.

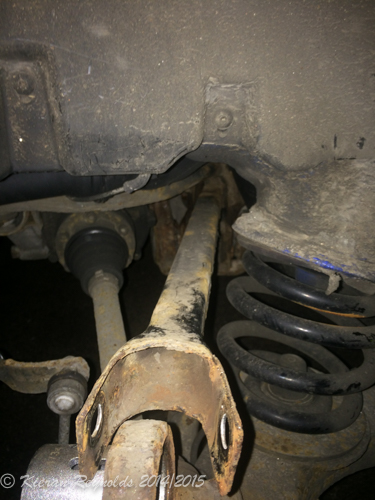

7Dii_IMG_3126As you may recall from part 1, I am having to do extra I put the new bushes in, to take the old broken transverse arm out, and replace it with a new one.

Right: You can clearly see the end of the transverse link arm is bent out to the right more than the left. Note: I’ve not put the replacement bush in at the top yet.

You can also see that this appears to go a long way “in” to the centre of the car, and puts things like the suspension spring, drive shaft, and ARB/droplink into perspective.

So – getting it out is easier said than done.

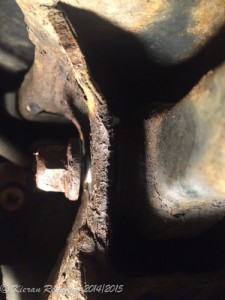

7Dii_IMG_3143Firstly, getting the bolt out of the sub-frame end of the transverse arm was difficult. Despite all the normal precautions of liberally sprayingWD40 on the nut, and brushing as much rusty crap off the end threads as possible, the nut jammed onto the bolt as I was unscrewing it.

Right: This is how little the nut came off the bolt – maybe 4 or 5 mm – but thankfully just about enough to be able to get a hacksaw between the nut and the rear subframe.

Going to be cutting rather close the subframe mind ! Oh well – this is the sort of challenge that makes life fun eh ? 🙂

7Dii_IMG_3139

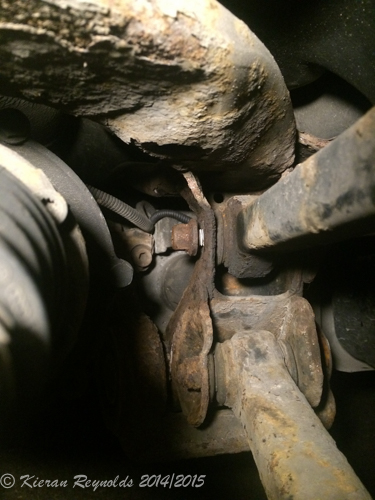

A somewhat further away shot (Right:) shows rather clearly that nice little gap between nut and subframe, but again just how far *into* the car this is.

This also shows now much of a pain in the arse this is being the top transverse link instead of the bottom one.

The black circular thing on the left is the drive shaft from the rear diff to the wheel hub.

Nothing to do but to get the trusty hacksaw out, and start hacking away at a 10.9 bolt – not exactly hot knife and butter time.

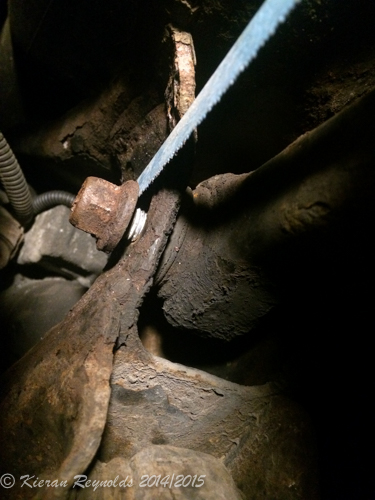

7Dii_IMG_3140Right and below: So up steps Mr H. acksaw and after giving me a sore arm and shoulder some time later, as well as “excuse” to blurt out a few choice words during – the bolt 7Dii_IMG_3145is cut to release the seized on nut, and I can start think about removing the bolt from the transverse arm and subframe.

You would have thought that the problem 7Dii_IMG_3120ends there right ?

No.

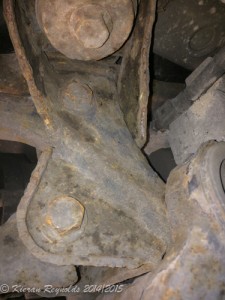

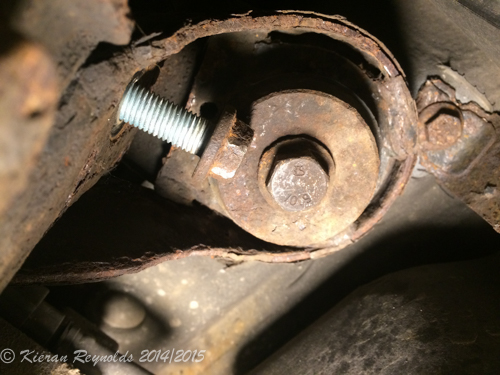

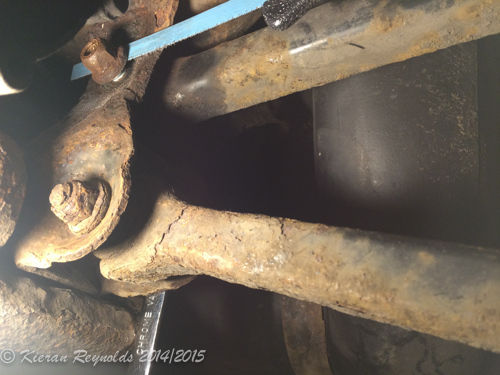

As you can see from the shot to the right, the top transverse arm bolt looks awfully close to the subframe to chassis bolt, and it could be down to luck and a following wind that allows the transverse link nut to be removed without doing anything to the subframe nut….

….. but no luck or following wind today ……

7Dii_IMG_3152

In their infinite wisdom, Audi appear to have built this thing such that one of the bolts that holds the subframe to the chassis does actually foul the path of the bolt holding the top transverse link to the subframe – ARRRRGGGGGH.

Right: Nut fouling. No, nothing like that ! Sorry – bit of sense of humour failure today . :-s

Guess what – the bolt that holds the subframe to the chassis is a stretch bolt that needs replacing when it is removed !

OK – it’s a dead cheap part all things considered, but it’s one thing I wasn’t counting on, and once I ‘d taken out the transverse link bolt, and ultimately replaced the arm, and put it’s new bolt it, I put the old subframe -> chassis bolt back in overnight, until I could get hold of the new bolt (note, I wasn’t driving the car, so it didn’t matter)

There is an awful lot of commentary on the Interweb about stretch bolts, and whether or not to automatically replace them as per the instructions in a workshop manual once you have undone and removed them.

Frankly, for the £4 or so that it costs to replace them, the peace of mind I have (and so should you) of following the replacement as documented in the manual is well worth it – there are very good reasons why  you should replace them, which I won’t go into – JFDI – Just Fucking Do It.

Replacement is pretty much reverse of dismantling it, just remember to torque everything up accordingly – noting that as these are rubber components, the final torque and turn must be done with the weight of the car fully on the suspension – which is “entertaining” without a full car lift or a pit.7Dii_IMG_3158

Right: Transverse link replaced, and looking for line up of the holes before threading the new bolt through.

Other than the challenge of the subframe mounting nut, and the hacksaw, replacing the arm wasn’t really difficult, as with all these things, slowly and carefully work through each and every step, and you will be  rewarded.

Whilst we are here, we should take a moment to look at what I’ve replaced, and why…

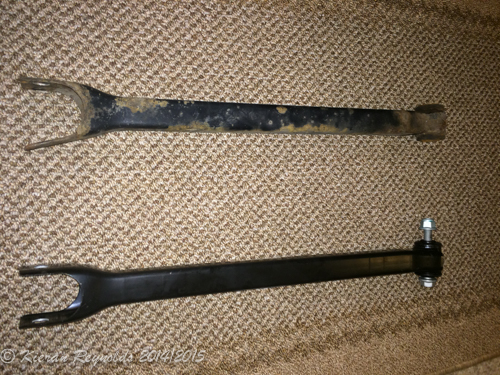

7Dii_IMG_3157Right: So – my normal – guess which is new and which is old picture.

Clearly the old and broken one has a wider U-shape where it fitted into the failed rose bush.

It’s really when you start looking a lot closer though that you really get the sense of how much of an “Oh fuuuuuuck” moment this almost was.

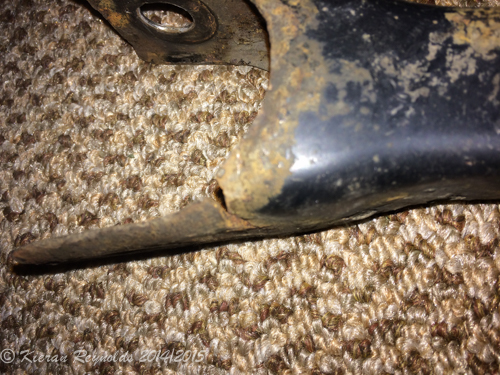

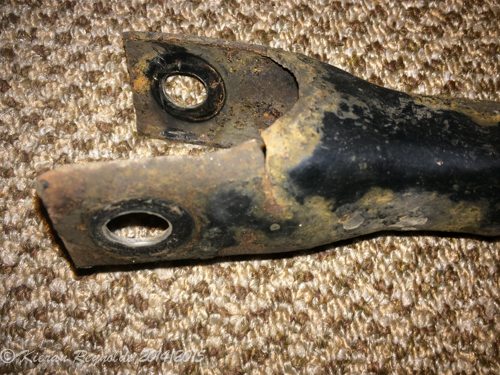

7Dii_IMG_3156Right: The rather terrifying close ups of the failed link arm

7Dii_IMG_3154

Good God – look at the crack in that transverse arm – I think “getting lucky” is something that I would definitely say here.

That crack is running just shy of 1/2 the way through that leg of the Y on the arm – and I doubt if a single side of a Y would be able to take up the strain of suspension movement on a normal British road of one side had decided to catastrophically fail.

So – what was the underlying cause for this link failure ?

A bloody bush.

A simple, less than £20 item.

These bushes are designed to have a fair degree of flexibility in all planes, to allow a degree of controlled movement in the suspension, and to give another layer of comfort to the occupants by taking some of the direct road vibration out at the rubber joint.

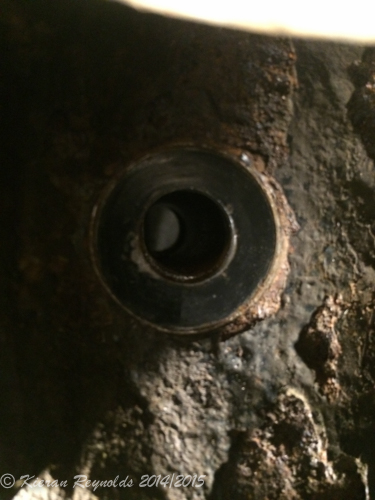

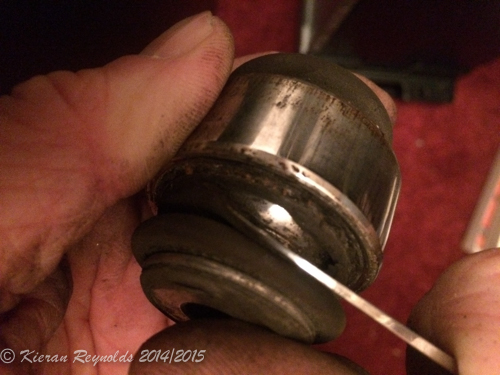

7Dii_IMG_3207Right: Seriously – how broken is this bush ?

See how much rust there is on the *inside* of the rubber casing ?

I took a video of me trying to wiggle the bush, but it is pointless to post it, as you can’t tell there is any movement at all – and that is precisely the failure – no movement, and thus any movement that needs to be “taken up” by the bush is transferred to the transverse arm, and ultimately causes a fatigue failure.

7Dii_IMG_3208Compare it to another bush that I took off the car, Right: – this one shows nice and shiny on the inside.

The new bushes are a of a completely new design, and aren’t “bearing bushes” – but appear to be solid lumps of rubber – they may well eventually perish, but it will be slow, and quite obvious – rather than this inside out corrosion and relatively quick failure.

Now – that’s my drivers side all fixed, I need to get on with the passenger side in part 3.





























Rear bush comes to shove – part 1

This one really should start with an “OH FUCK!”

Really, it needs to….

It’s not everyday you are poking around at the back of your daily commuter car, standard “are the brake pads thick enough”, “are the tyres looking like Telly Savalas yet ?”  and you spot something that really makes you go “OH FUCK!”

Well – this is one of them – my transverse link arm has a fucking crack!

I can see the (head)light!

Olivia, and other cars of her species, and close species (Golf MKIV’s, some Seats and Skoda’s) and vintage, i.e, almost all Audi A3 8L’s have a little problem with their headlights – they are plastic, and eventually degrade, causing what was a good headlight to be worse than a candle at 20 miles, with your eyes shut.

What really did it for me thought, was driving home one night, and Olivia was casting her own shadow, in her own headlights light, from the headlights of the car behind !

Something had to be done – so Fleabay was where I went….. and picked up a pair of headlamp units for about 80 quid.

Standard service

It’s Christmas Eve – I’m not seeing my gorgeous Cath today, and although I am a man, I am ready for Christmas itself, I have a few hours to kill – and it’s that time again, time to make Olivia run a little bit better than she has been over the last few weeks.

A treat, of good oil, and a bit of TLC.

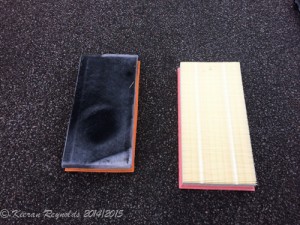

7Dii_iPhone 5s_2927First off – air filter – anyone want to hazard a guess as to which one is the old, and which one is the new one ?

50 points for you house if you get it right, 50 points deducted, if you get it wrong 🙂

To be honest, I think that is one of the worst looking air filters I have ever removed from a car.

Now, I know damn well, since I’ve owned this lump, it’s not had it’s pollen filter replaced, and the windscreen blowers has about as much oooomph as an asthmatic ant, so something quite clearly wasn’t all right there, and I was fully prepared to do a lot of work to get that working, bearing in mind it’s now winter.

7Dii_iPhone 5s_2926However, let’s first do the cheap and simple (sorta) option, and replace a filter.

Again, a test, which is the new, and which is the old ?

Right: No brainer right ?

If only it was that easy.

In VAG’s infinite wisdom, the location for the pollen filter, is under the left hand side of the windscreen – it makes getting at it a bit of a pain, which might not be hugely evident form the following shots

7Dii_iPhone 5s_2928 7Dii_iPhone 5s_2929

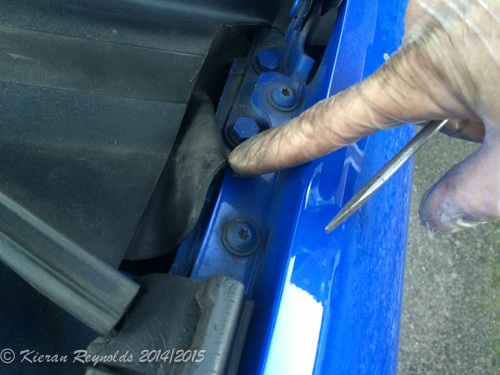

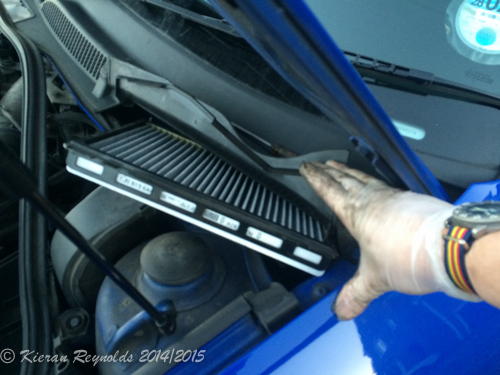

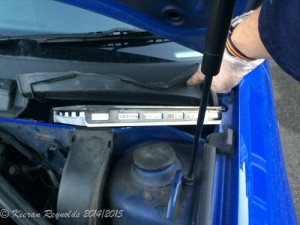

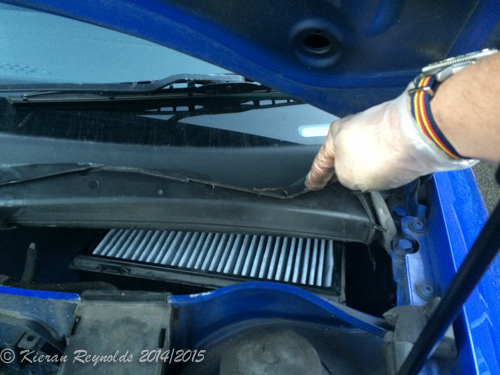

Above: It looks easy enough right ? Well, it is very tight in there, so tight in fact that trying to get the filter to fit, and clip/click into place when there really isn’t enough headroom to have the filter above the filter recepticle is a little deciveing.

7Dii_iPhone 5s_2930 7Dii_iPhone 5s_2931

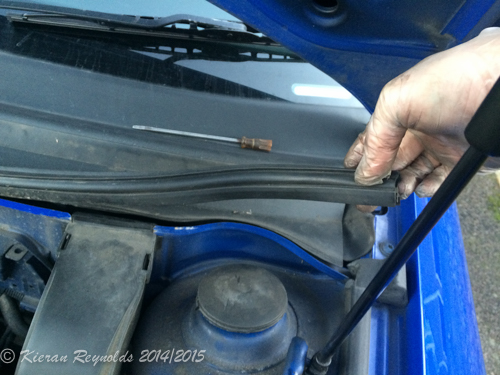

Once in however, it is rather neat, and then just make sure you tidy up all the little plastic/rubber edges away to their location, otherwise they look crap, and foul up neat closing of the bonnet.

7Dii_iPhone 5s_2932 7Dii_iPhone 5s_2933

Below: All complete.

7Dii_iPhone 5s_2934

To be fair, it is neat and unobtrusive, but the first time you replace this, it’s a definite test of patience, dexterity, and smallness of hands (I definitely fail at that last one)

And – the heaters are now most certainly *NOT* an asthmatic ant, definitely more usable in the winter months now.



Tie rod ends – bugger!

I’d taken Olivia for a set of new boots, and the lovely chaps at Wheatley Tyres showed real care and customer service by checking the suspension setup as part of putting the newly shod wheels back onto the car, when they noticed that the left hand steering arm had some significant “play” in the top ball joint.

Then top ball joint is actually the tie rod end, the union of the tie rod, which comes straight from the steering rack, to the hub carrier, and thus not only travels left to right as part of normal steering, but has vertical movement in the form of suspension travel – and thus must be a ball joint..

Thankfully, replacement is (should be) a relatively trivial affair, undo a bolt to separate the end from the hub carrier, give it a nudge to loosen any purchase the hub carrier has to the bolt, and then unwind off the steering arm – and then reverse it all –  however, Olivia, being Olivia, that wasn’t to be – oh no…

7Dii_IMG_1457It started easy enough on the left side, turn the wheels all the way to the right to give space, jack car up, and support properly (for me – and everyone else, that reads axle stands people – a jack isn’t a proper support – ever!) – remove the wheel, and put somewhere safe outta the way.

Next,  slide in an Allen key to the hex hole in the bottom of the bolt through the hub carrier, and use a spanner to undo the nut.

Right: I’ve almost undone the bottom nut to the point where I can start thinking about separating things.

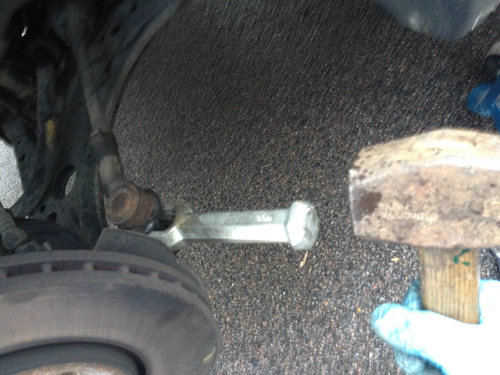

7Dii_IMG_1458Take the nut off, and using a ball splitter, and in my case, a little persuader in the form of a 4lb club hammer (right) pry the bolt out of the hub carrier.

A quick mark on the steering rod, to mark the place where the tie-rod end  holding nut is in place – undo this locking nut, and then un-screw the rod-end itself, counting the number of full revolutions until it comes off the end.

So far – so good. (below)

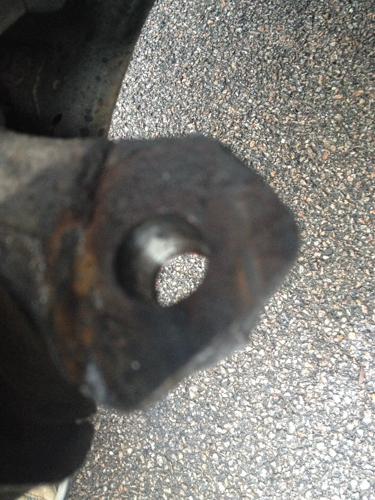

7Dii_IMG_1460Re-fittting is of course, the reverse, make sure the threads on the steering arm are clean, and put a tiny bit of grease to help prevent them ever seizing to the steering rod, and do up the tie rod end all the way to your mark, double checking with the number of rotations as you go.

Once you’ve screwed the rod-end into your mark, then you need to tighten it on with the captive nut on the steering arm.

Dead easy – up to the point it locks against the rod end – and then nip it up tight.

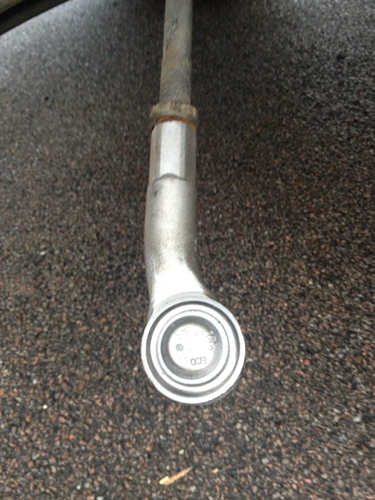

7Dii_IMG_1459Right – we have a nice shot showing the replaced tie-rod end prior to me doing up the end lock nut, and attaching the rod-end to the hub carrier.

Nice and shiny ain’t it ? 😀

Next thread the bolt part through the hub-carrier, and fit the supplied new nut on the end, and tighten to the correct torque (look it up – I’ve forgotten!)

Stick wheel back on, lower car, and rinse and repeat the other side, and then go and get the tracking checked.

You’d think side two is really just that – rinse and repeat right ?

Hahahaha…

No.

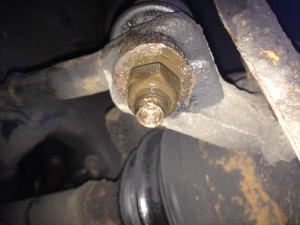

7Dii_IMG_1463Some ignorant ape that had worked on the car prior to my purchase of it, had done a wonderful job in rounding off, and destroying any hex socket for any size Allen key to fit into the underside of the ball joint – so when I tried to undo the nut – the whole nut, and ball swiveled inside itself, and refused to come undone any further.

BUGGER.

Above right kinda shows the problem – there is no hex hole to put an Allen key in!

7Dii_IMG_1464Oh well – hacksaw to the rescue.

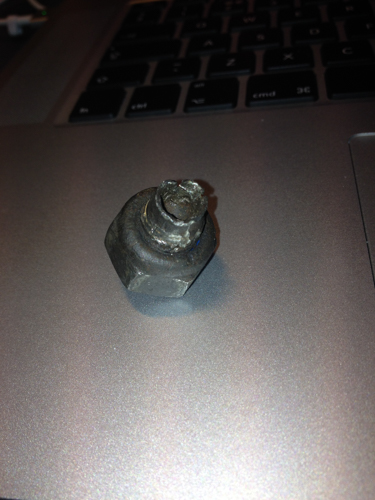

A good few minutes, and a fair bit of cussing later, we have a bolt cut off..

Right: See how much of a mess that Allen key hex is ?

That ain’t gonna work no matter how hard you try.

Well – this “minor” problem out of the way, and it’s follow the earlier principles, of undoing the lock-nut, marking the position, and unscrewing the tie-rod end, and removing the now very dead unit, and replacing the whole lot.

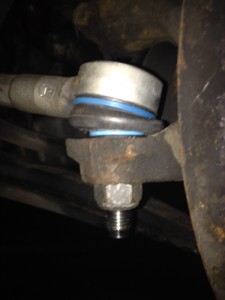

7Dii_IMG_1482And finally – here on the right – we have it replaced, looking as new and perfect as it should do.

(yes – that tilt is perfectly fine – it’s gonna get a helluva lot more wiggly when it’s in use and the car is popping up and over bumps!)

Chalk off another challenge Olivia has given me, and one I’ve slapped aside as a “next please!”

Happy travels again 😀





New rear shocks.

I was digging around at the back of the car, and found some moisture on both the rear shocks – not something to worry about if you’ve been driving the car on wet roads, which I hadn’t.

Yeah, both rear shocks were failing, and had begun to leak, time to replace them or risk an inevitable MOT failure.

Thankfully Olivia, is a Quattro, it actually makes doing this work a little easier IMHO.
